fire behaviour

flame resistance: acc. to IEC 60332-3-24/22
halogen free: acc. to IEC 60754-1/2
smoke density:  acc. to IEC 61034-1/2
fire load (MJ/m): 0.80 (approx.)

performance:

better than Category 7 acc. to EN 50288 and IEC 61156 excellent NEXT, low attenuation, exzellente screen properties (pair- and overall screen), low Skew
bandwidth (typical): 700 MHz

mechanical characteristics:

bending radius: in operation: 5 x outer diameter (min.) tensile loading (N): 400 (max.)
crush resistance (N/100mm): 1000
impact strength (quantity of impacts): 10

electromagnetic behaviour:

transfer impedance at 10 MHz (mOhm/m):  5
screen attenuation up to 1000 MHz (dB): 60
coupling attenuation up to 1000 MHz (dB):  90
Segregation class according EN 50174-2: d

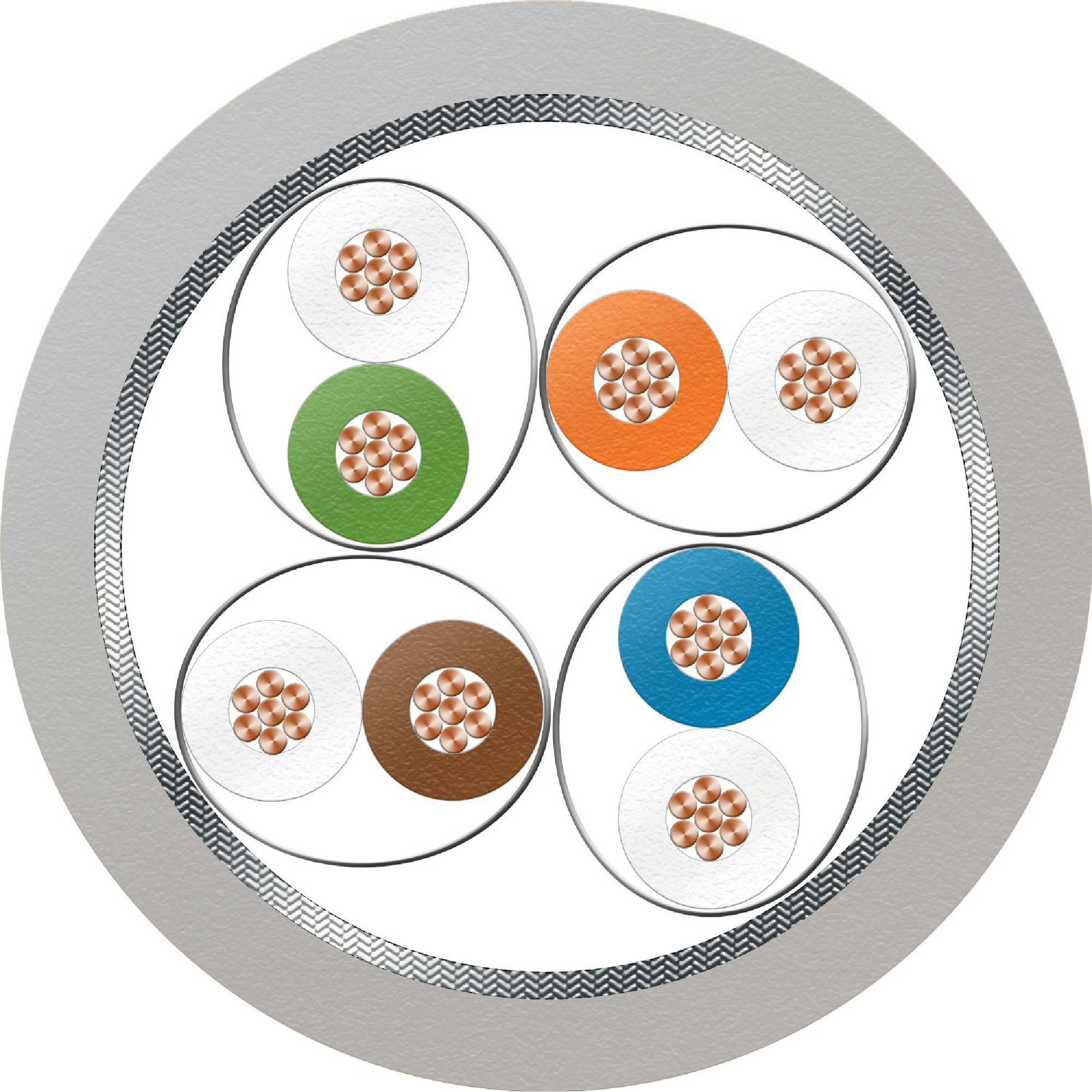

Type: KS-02YSCHV 4x2xAWG 24/7 PIMF
Category: 7

Installation cable and patch cord for generic cabling systems acc. to ISO/IEC 11801 and EN 50173 (3nd edition) and also acc. to ISO/IEC 24702 and EN 50173- 3. Ideal for all applications of class D up to F Multimedia (Video, Data, Voice) >10 GbE acc. to IEEE 802.3 an, Cable sharing, VoIP, PoE/PoE+. For outdoor and application in rough environment because of extrem strong H-sheath.

APPROVALS

• DNV-GL  Germanischer Lloyd
