DNV-GL certified and purpose-built for marine and offshore cable installations, this cable is fully approved for demanding shipboard and offshore applications where safety, durability, and regulatory compliance matter.

Key features & compliance

• DNV-GL certified for marine & offshore use
• RoHS compliant (Directive 2011/65/EC)
• Fire-retardant, Zero Halogen (LSZH / ZH) construction
• Halogen-free per IEC 60754-1/2 (low corrosive/toxic gases)
• Low smoke density per IEC 61034-1/2 (improved visibility during fire)
• UV-resistant for harsh outdoor and topside exposure

Wire
Solid bare copper wire (23/1 AWG)
Insulation of foamed Polyethylene (PE) with skin Flame retardant foil, overlapped

Screened pair
2 wires twisted to a pair Plastic tape overlapped Alulaminate foil overlapped

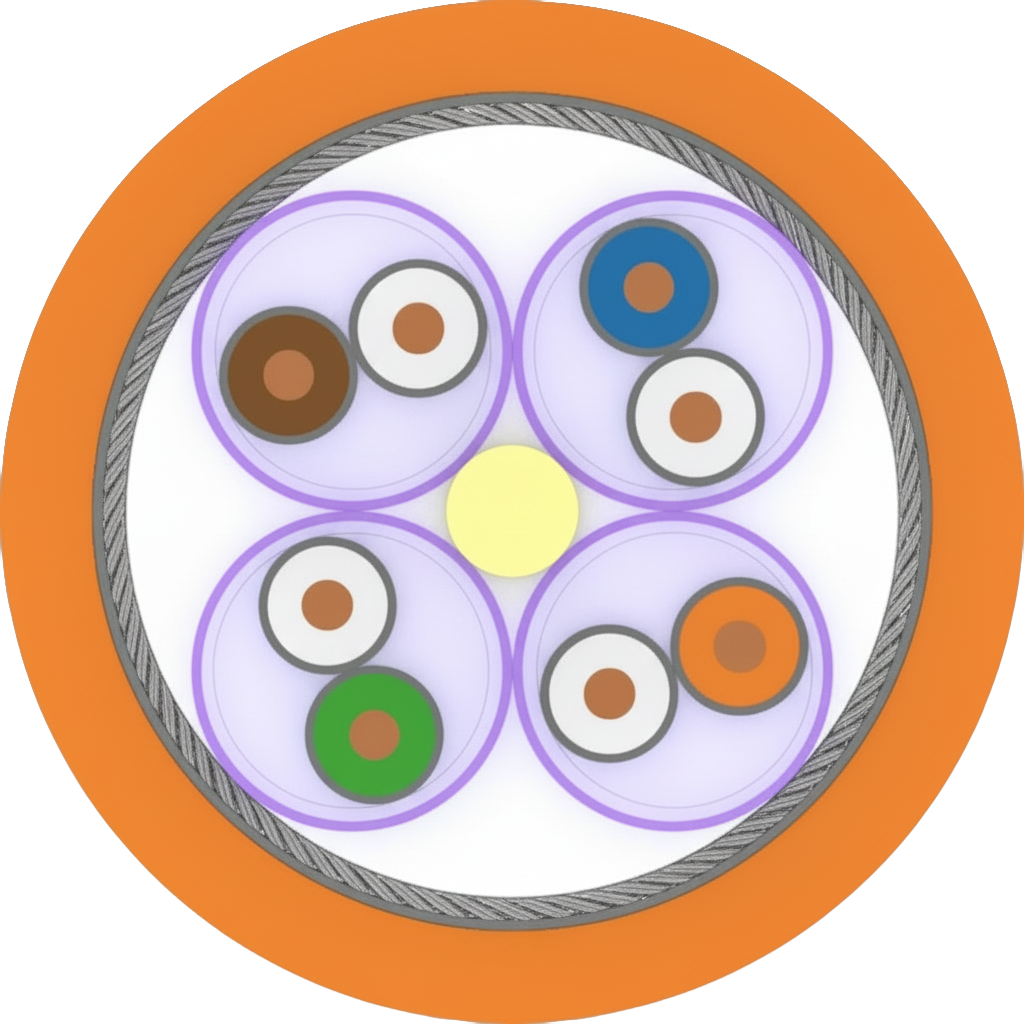

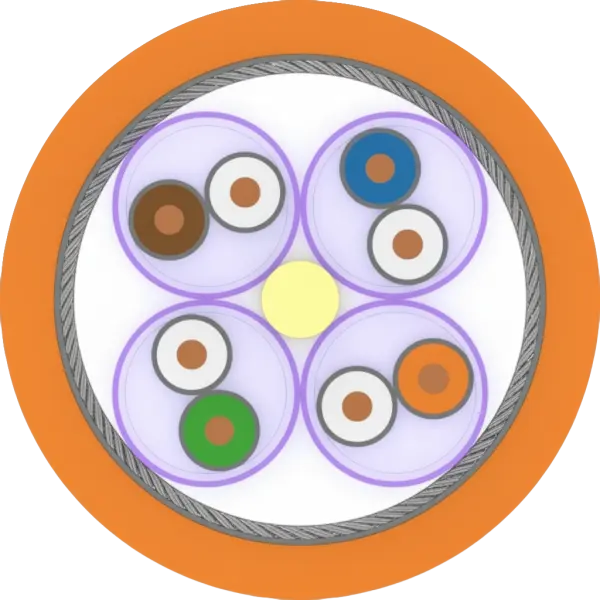

Core
Central element: Strain relief
4 screened pairs
Sequence of colors: WH/BU-WH/OG-WH/GN-WH/BN Shield braiding of tinned copper wires
Coverage about 65%
Flame retardant foil, overlapped

Jacket
Thermoplastic copolymer (FRNC) OG

02YS(FE)C(FE)H 4X2X0.6/1.67-100 PIMF OG
