Marine & Offshore Approved CAT7 Ethernet Cable (SHF1) – PIMF, LSZH, UV-Resistant
This CAT 7 (SHF1) PIMF data cable is approved for marine and offshore applications, designed for reliable high-speed communication in harsh environments. The cable is RoHS compliant and features a low smoke, fire-retardant, zero-halogen (LSZH) jacket for enhanced safety onboard and offshore installations.
It meets IEC 60754-2 for low corrosivity of fumes and IEC 61034 for smoke density, supporting safer evacuation and reduced equipment damage in the event of fire. The outer sheath is UV-resistant, making it suitable for exposed installations.

• Approved for Marine & Offshore applications
• CAT 7 (SHF1) PIMF construction
• RoHS compliant
• Low Smoke, Fire Retardant, Zero Halogen (LSZH)
• Corrosivity of fumes: IEC 60754-2
• Smoke density: IEC 61034
• UV-resistant outer sheath

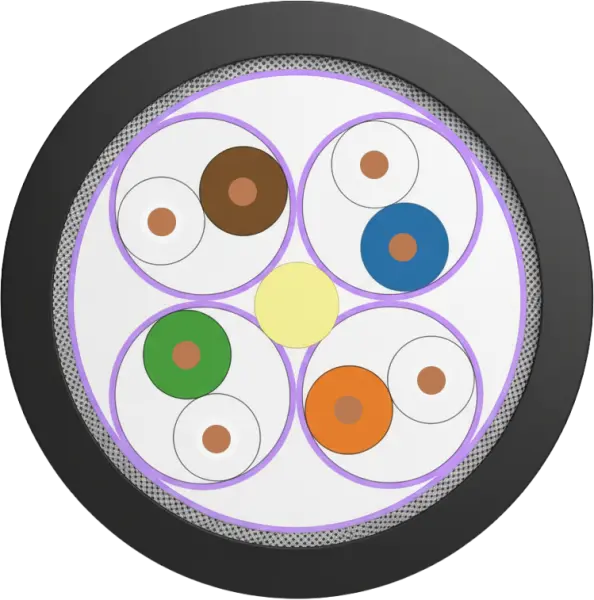

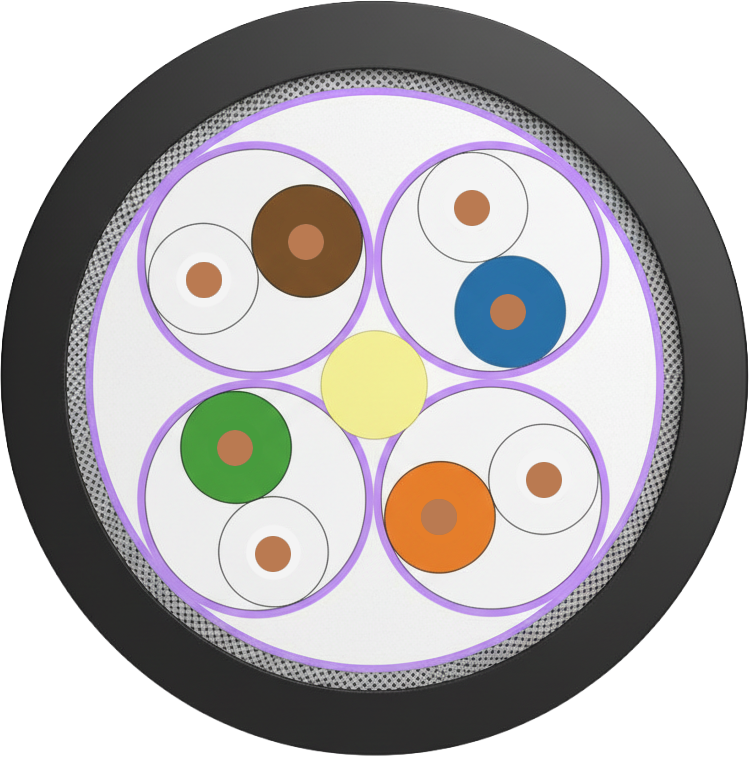

Wire
Bare copper wire (23 AWG)
Insulation of foamed Polyethylene (PE) with skin
Screened pair
2 wires twisted to a pair
Alulaminate foil overlapped, applied longitudinally

Core:
Strain member of kevlar
4 screened pairs
Sequence of colors: WH/BU-WH/OG-WH/GN-WH/BN
Shield braiding of tinned copper wires 0.1 mm dia (38 AWG)
Coverage about 55%

Jacket:
Thermoplastic copolymer (FRNC) BK
Wall thickness about 1.0 mm (IEC 60092-376)
