Marine & Offshore CAT 7 Cable (MUD RES)

Designed for demanding marine and offshore installations, this CAT 7 (MUD RES) data cable delivers reliable high-speed performance with enhanced protection against harsh environments. The cable is RoHS compliant (Directive 2011/65/EC) and features a fire-retardant, zero-halogen (LSZH) construction to support safer operation in enclosed and high-risk areas. Its jacket is UV-resistant for long-term outdoor exposure, while the halogen-free design complies with IEC 60754-1.

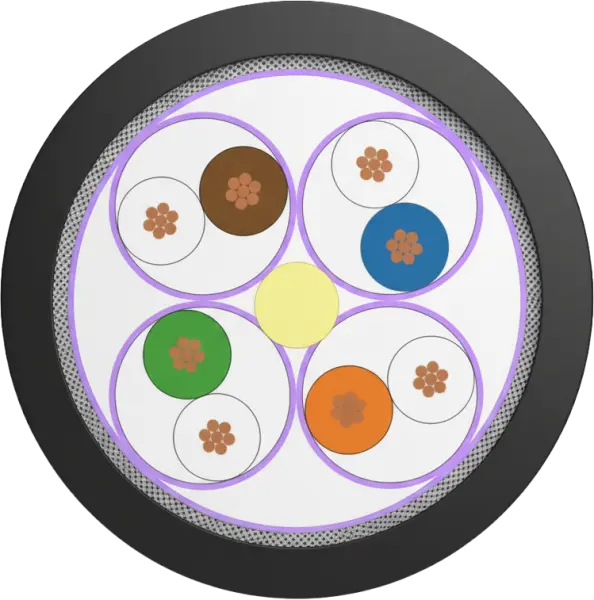

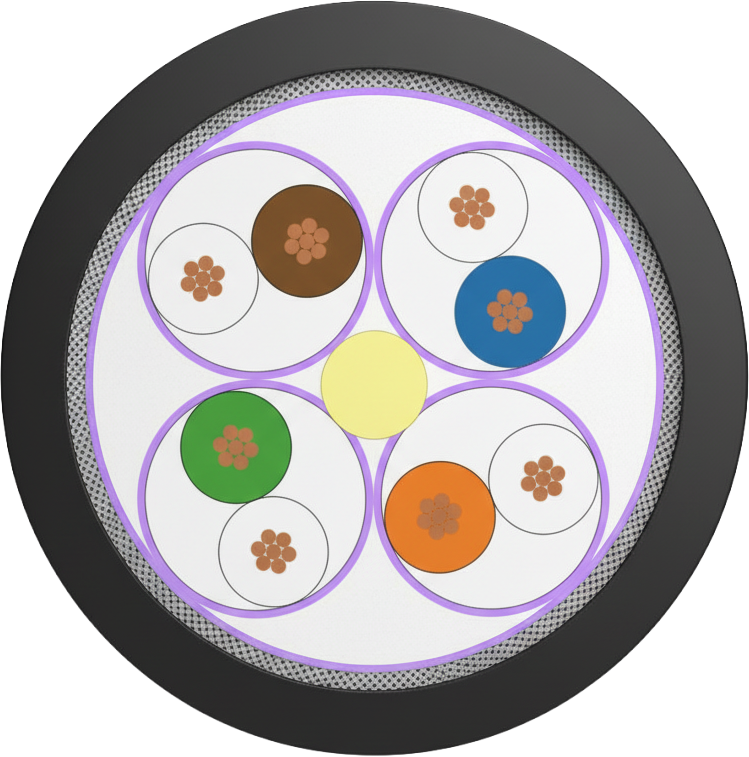

Construction & Materials

Conductors

• Bare copper conductors, 23 AWG
• Insulation: foamed Polyethylene (PE) with skin for stable electrical performance and improved impedance control

Pair Screening

• 2 conductors twisted into each pair
• Individual pair screen: Aluminium-laminate foil, overlapped and applied longitudinally for strong EMC shielding

Core

• Integrated strain relief for improved mechanical stability during installation and operation
• 4 individually screened twisted pairs
• Pair colour sequence: WH/BU – WH/OG – WH/GN – WH/BN
• Overall shield: tinned copper wire braid, 0.1 mm diameter (38 AWG)
• Braid coverage: approx. 55%

Outer Jacket

• Jacket material: special thermoplastic copolymer, black (BK)
• Wall thickness: approx. 1.0 mm in accordance with IEC 60092-376

Key Benefits for Marine & Offshore Use

• Approved for marine & offshore applications
• CAT 7 performance with robust shielding (pair foil + overall braid)
• MUD resistant (MUD RES) for harsh platform and offshore environments
• LSZH / Zero Halogen for reduced smoke and corrosive gases in fire scenarios
• UV-resistant outer sheath for exposed runs
• RoHS compliant for regulatory alignment
