RoHS-compliant (Directive 2011/65/EU), this marine and offshore cable is engineered for demanding environments. It features a fire-retardant, zero-halogen (LSZH) construction and is halogen-free in accordance with IEC 60754-1, helping to reduce corrosive and toxic gas emission in the event of fire. The outer sheath is UV-resistant for long-term durability in exposed installations.

Approved for Marine and Offshore Applications, making it suitable for shipboard and offshore platform cable runs where safety, compliance, and reliability are critical.

Approved for Marine and Offshore Applications

Wire
Stranded bare copper wire 7 X 0.2 (24 AWG) (0.22 mm2)
Insulation of foamed Polyethylene (PE) with skin
Screened pair
2 wires twisted to a pair
Alulaminate foil overlapped, applied longitudinally

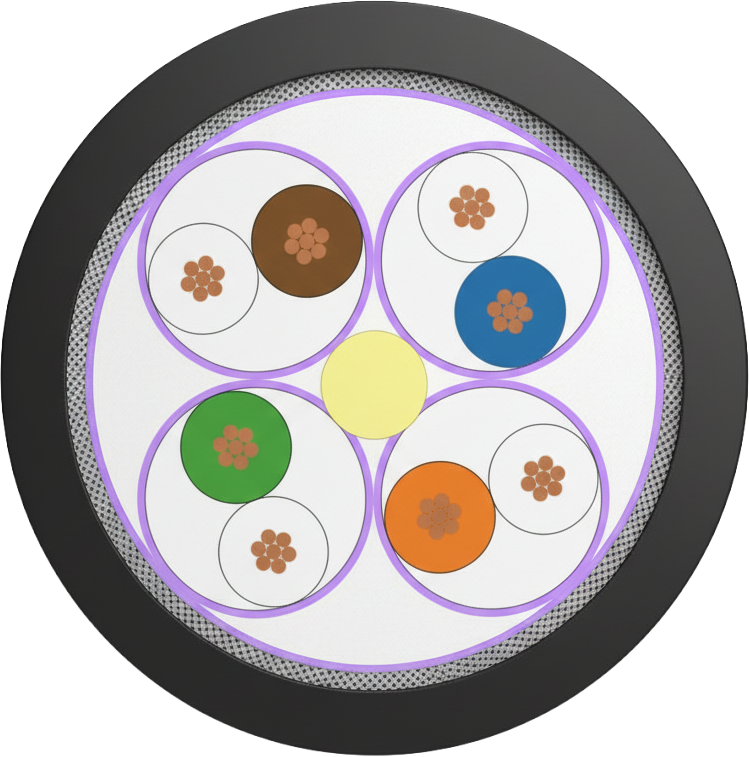

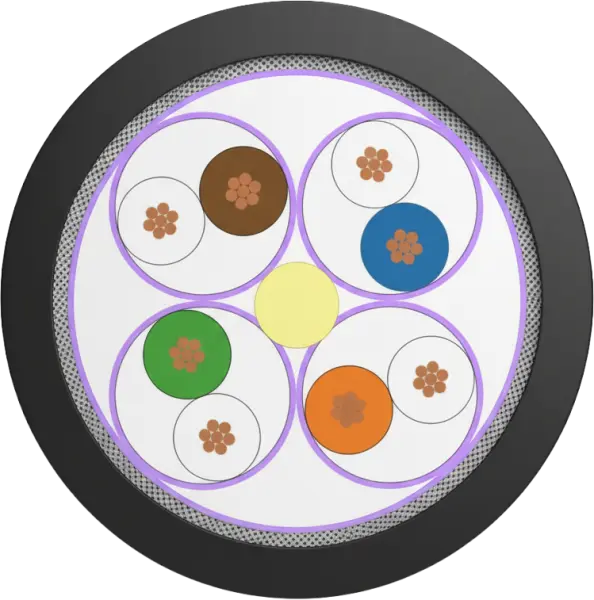

Core:
Central element: Strain relief
4 screened pairs twisted
Sequence of colors: WH/BU-WH/OG-WH/GN-WH/BN
Shield braiding of tinned copper wires 0.1 mm dia (38 AWG)
Coverage about 60%

Jacket:
Special thermoplastic copolymer BK
Wall thickness about 1.0 mm (IEC 60092-376)
