Designed for demanding marine and offshore environments, this cable is DNV-GL certified and engineered to deliver reliable performance where safety and compliance are critical. It is RoHS compliant, fire-retardant, and zero-halogenfor reduced smoke and toxicity in the event of fire. The cable is halogen-free in accordance with IEC 60754-1 and features a UV-resistant outer sheath, making it suitable for harsh outdoor and deck installations.

Key features

• Approved for marine & offshore applications
• DNV-GL certified
• RoHS compliant
• Fire-retardant construction
• Zero-halogen / halogen-free (IEC 60754-1)
• UV-resistant for outdoor exposure

Wire
Stranded bare copper wire 7 X 0.16 (26 AWG)
Insulation of foamed Polyethylene (PE) with skin
Screened pair
2 wires twisted to a pair
Alulaminate foil overlapped, applied longitudinally

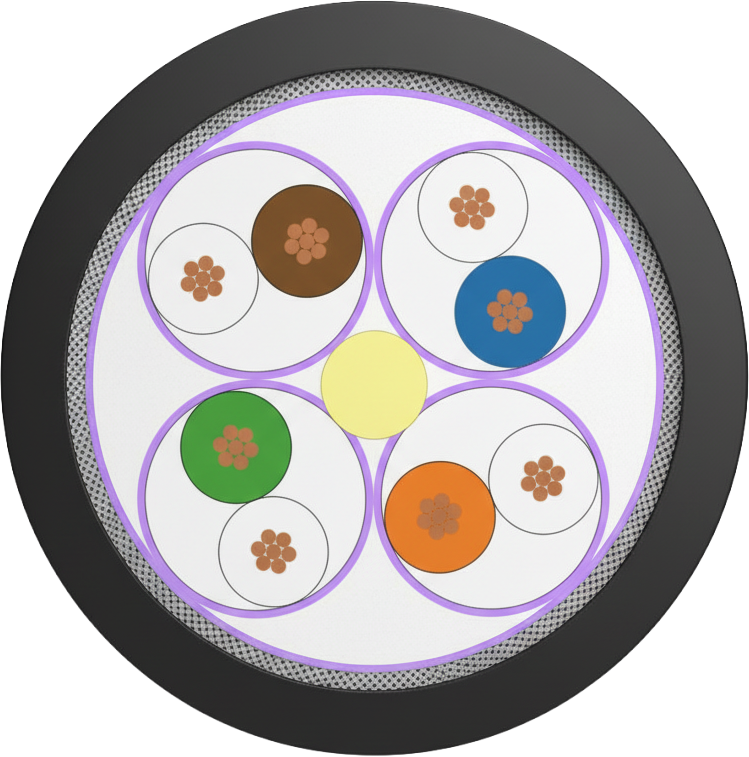

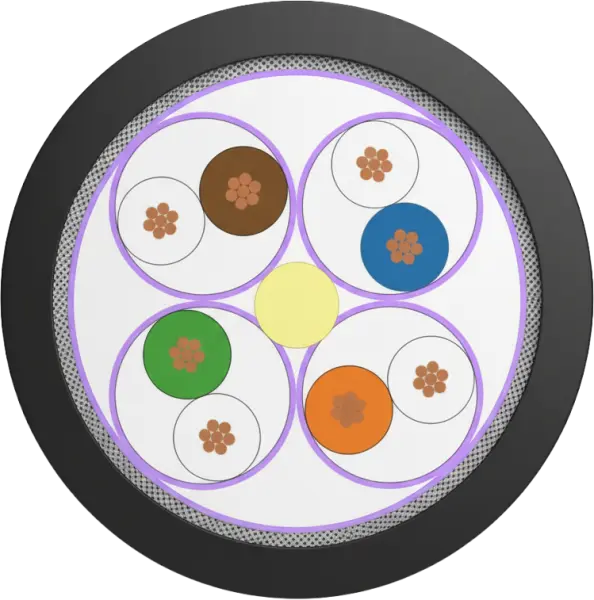

Core:
Kevlar yarns as central element
4 screened pairs twisted
Sequence of colors: WH/BU-WH/OG-WH/GN-WH/BN
Shield braiding of tinned copper wires 0.1 mm dia (38 AWG)
Coverageabout 65%

Jacket:
Special thermoplastic copolymer BK
