Designed specifically for marine and offshore data networking, this CAT 7 (SHF1) cable delivers reliable high-performance transmission in harsh environments. The construction combines individually screened pairs with an overall copper braid for strong EMC protection, while the low-smoke, halogen-free FRNC jacket supports stringent safety requirements on board vessels and offshore installations.

Key Benefits for Marine & Offshore Installations

• Approved for Marine and Offshore Applications
• DNV-GL certified
• RoHS compliant (Directive 2011/65/EU)
• Low Smoke / Fire Retardant
• Zero Halogen (LSZH / halogen-free)
• Low corrosivity of fumes (IEC 60754-2)
• Low smoke density (IEC 61034)
• UV-resistant outer jacket for exposed runs

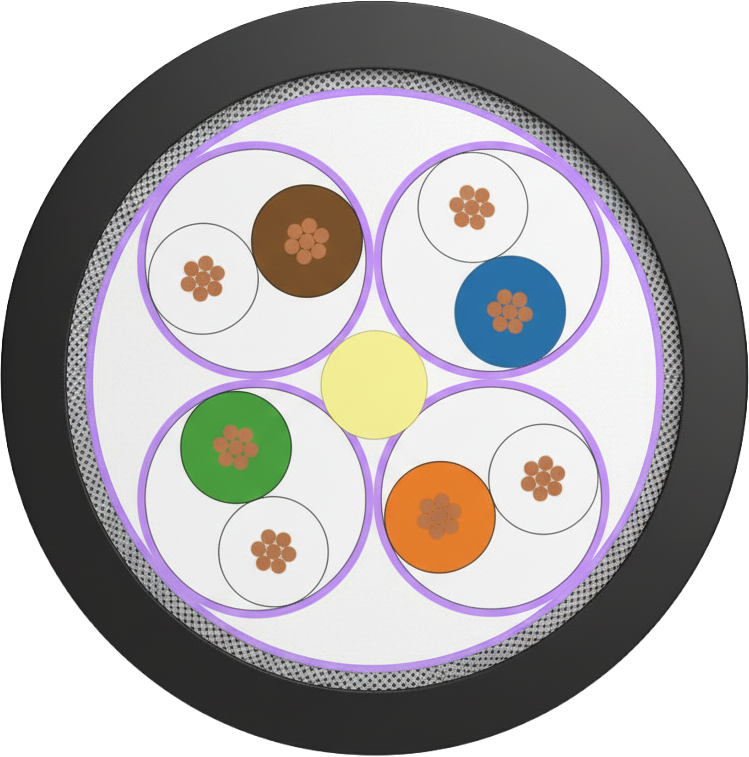

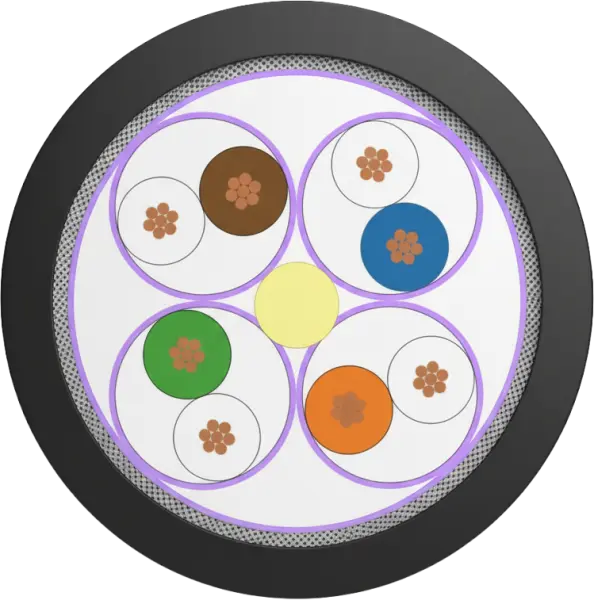

Wire
Stranded bare copper wire 7 X 0.2 (24 AWG) (0.22 mm2) Insulation of foamed Polyethylene (PE) with skin
Screened pair
2 wires twisted to a pair
Alulaminate foil overlapped, applied longitudinally

Core:
Central element: Strain relief (300 N)
4 screened pairs
Sequence of colors: WH/BU-WH/OG-WH/GN-WH/BN
Shield braiding of tinned copper wires 0.1 mm dia (38 AWG)
Coverage about 60%

Jacket:
Thermoplastic copolymer (FRNC) BK
Wall thickness about 1.0 mm (IEC 60092-376)

Approved for Marine and Offshore Applications
