Calpe Marine & Offshore Cable (Approved for Marine and Offshore Applications)

Designed and approved for demanding marine and offshore environments, this cable delivers reliable performance and enhanced safety on board and in harsh outdoor conditions.

Key Features & Compliance

• RoHS compliant (Directive 2011/65/EU)
• LSZH: Low Smoke, Zero Halogen with fire-retardant properties
• Low corrosivity of fumes in accordance with IEC 60754-2
• Low smoke density in accordance with IEC 61034
• UV-resistant for long-term outdoor exposure

Wire
Stranded tinned copper wire (23 AWG) Insulation of foamed Polyethylene (PE) with skin

Screened pair
2 wires twisted to a pair
Alulaminate foil overlapped, applied longitudinally

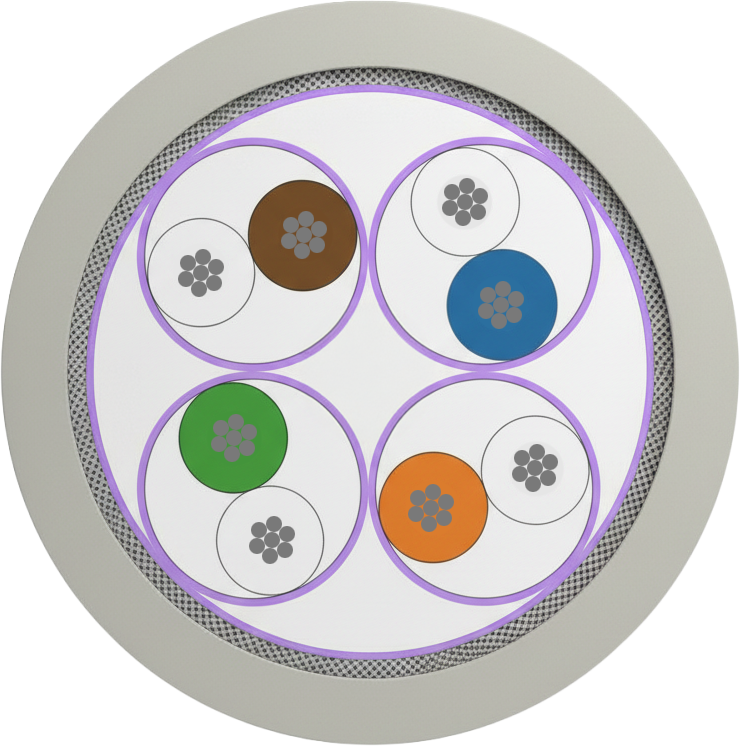

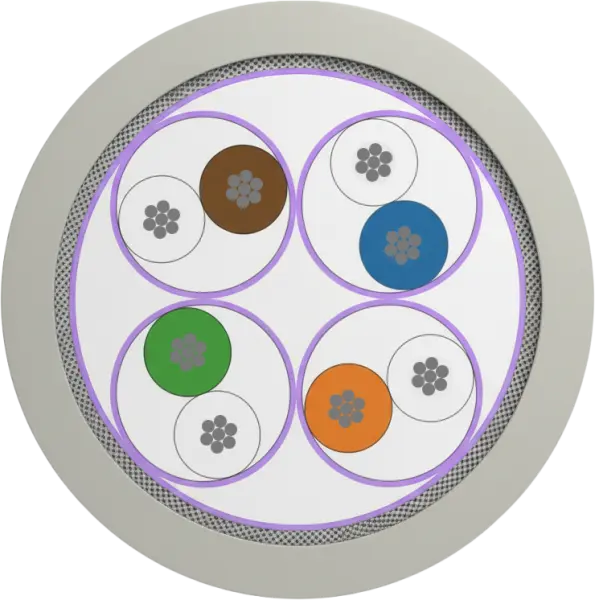

Core:
4 screened pairs
Sequence of colors: WH/BU-WH/OG-WH/GN-WH/BN Shield braiding of tinned copper wires
Coverage about 85%
