The CAT 6 SHF1 PIMF cable is a high-performance Ethernet data cable engineered for demanding marine and offshore installations. Approved for marine and offshore applications, it supports reliable, high-speed network connectivity for shipboard systems, offshore platforms, and other harsh-environment deployments.

Designed with SHF1 (halogen-free, low-smoke) jacket performance and PIMF shielding (Pairs in Metal Foil), this CAT6 marine data cable helps reduce electromagnetic interference and improves signal integrity, ideal for critical communication and control networks where stability and safety matter.

Wire
Bare copper wire (23 AWG)
Insulation of foamed Polyethylene (PE) with skin
Screened pair
2 wires twisted to a pair
Alulaminate foil overlapped, applied longitudinally

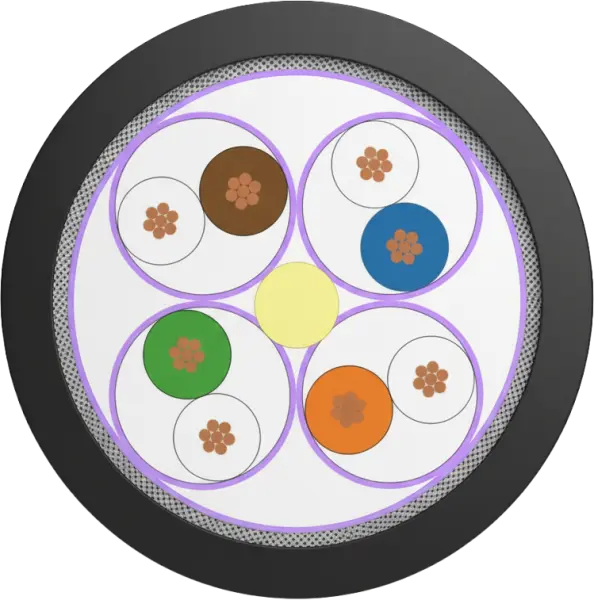

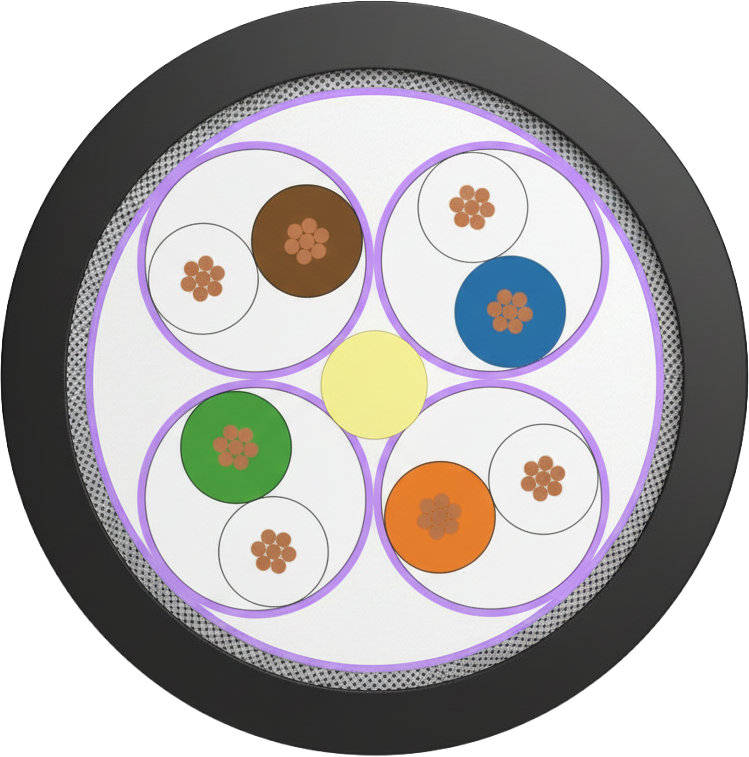

Core:
Central element: Strain relief (> 300N)
4 screened pairs
Sequence of colors: WH/BU-WH/OG-WH/GN-WH/BN
Shield braiding of tinned copper wires 0.1 mm dia (38 AWG)
Coverageabout 55%

Jacket:
Thermoplastic copolymer (FRNC) BK
Wall thickness about 1.0 mm (IEC 60092-376)
