CAT 6 SHF1
Description
Marine & Offshore Cat6 SHF1 Cable (DNV-GL Certified) / 02YSCHZH 4X2X0.76/1.8-100 LI PIMF BK (Black)
Designed for demanding marine and offshore environments, this CAT 6 SHF1 data cable is DNV-GL certified, making it a reliable choice for shipboard networks, offshore platforms, and other safety-critical installations.
Key features & compliance
- DNV-GL certified for marine and offshore applications
- RoHS compliant (Directive 2011/65/EC)
- LSZH / SHF1 jacket: Low Smoke, Flame Retardant, Zero Halogen
- Low corrosive gases according to IEC 60754-2 (corrosivity of fumes)
- Low smoke density according to IEC 61034
- UV-resistant for outdoor and exposed installations
Cable specification
- Cable type: 02YSCHZH 4X2X0.76/1.8-100 LI PIMF BK
- Category: CAT 6
- Sheath: SHF1 / LSZH
- Color: Black (BK)
- Construction: PIMF (individually shielded pairs) for enhanced EMC performance
Application

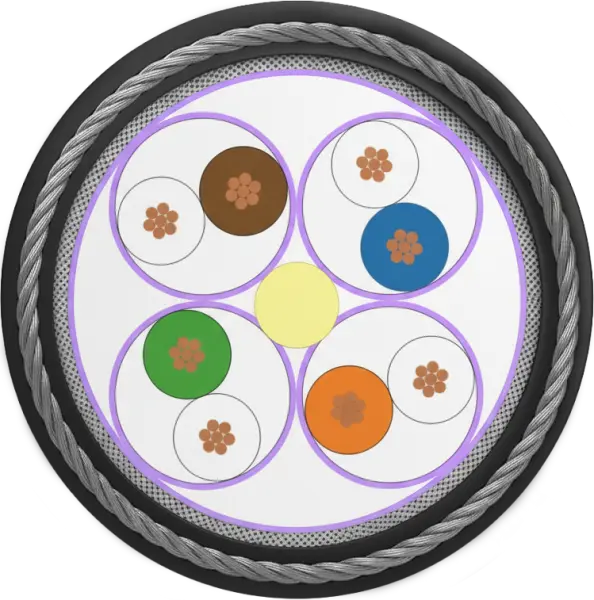

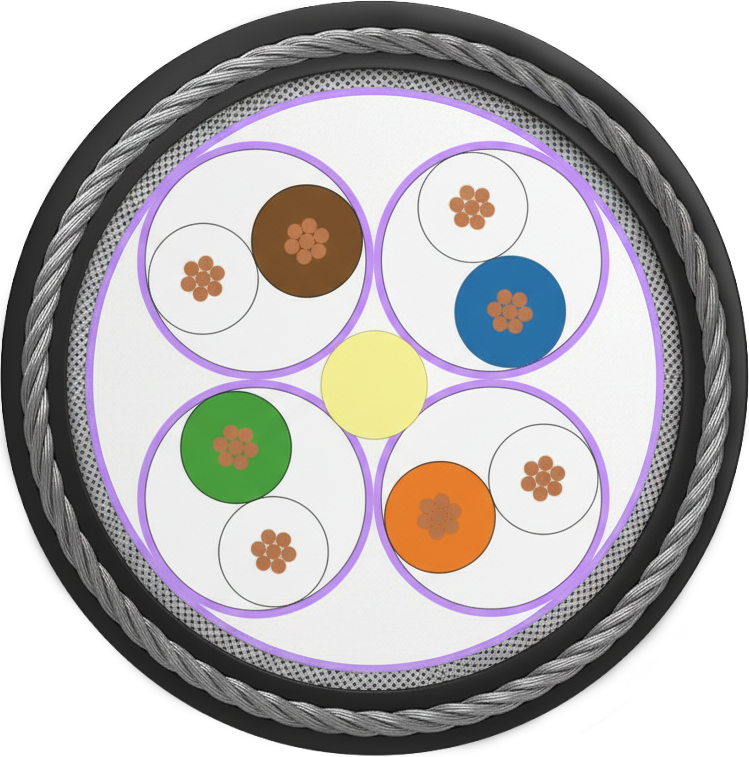

Wire
Stranded bare copper wire 7 X 0.25 (22 AWG) (0.34mm2) Insulation of foamed Polyethylene (PE) with skin
Screened pair
2 wires twisted to a pair
Alulaminate foil overlapped, applied longitudinally
Core:
Central element: Strain relief
4 screened pairs
Sequence of colors: WH/BU-WH/OG-WH/GN-WH/BN Shield braiding of tinned copper wires (38 AWG) Coverage about 65%
Jacket:
Thermoplastic copolymer Wall thickness about 1.1 mm
Braiding of stainless steel wires 0.2 mm dia
Thermoplastic copolymer (FRNC) BK Wall thickness about 0.9 mm
