The BETAflam® 145 C-flex VM is specially designed for use in draigchain for marine and offshore equipment, and is also recommended for use in switchboards, control boxes and dividation panels.

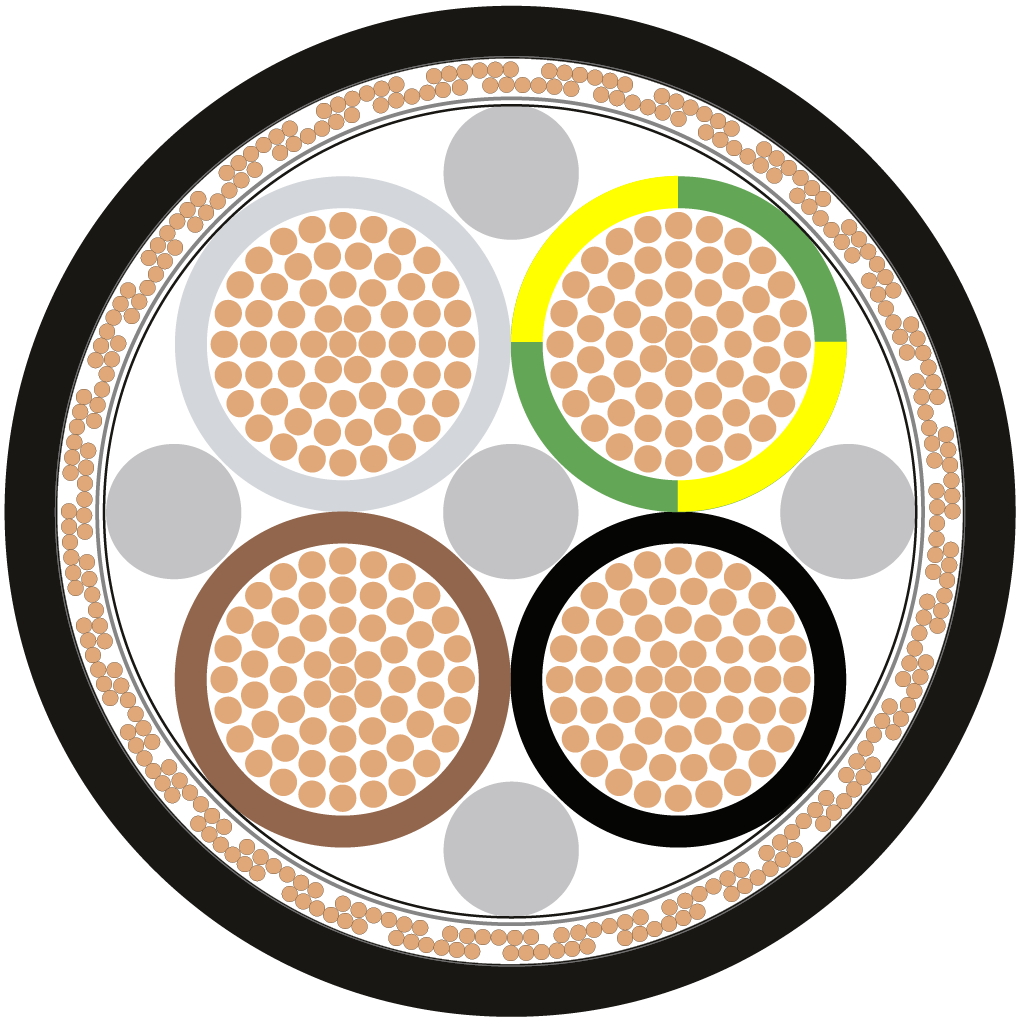

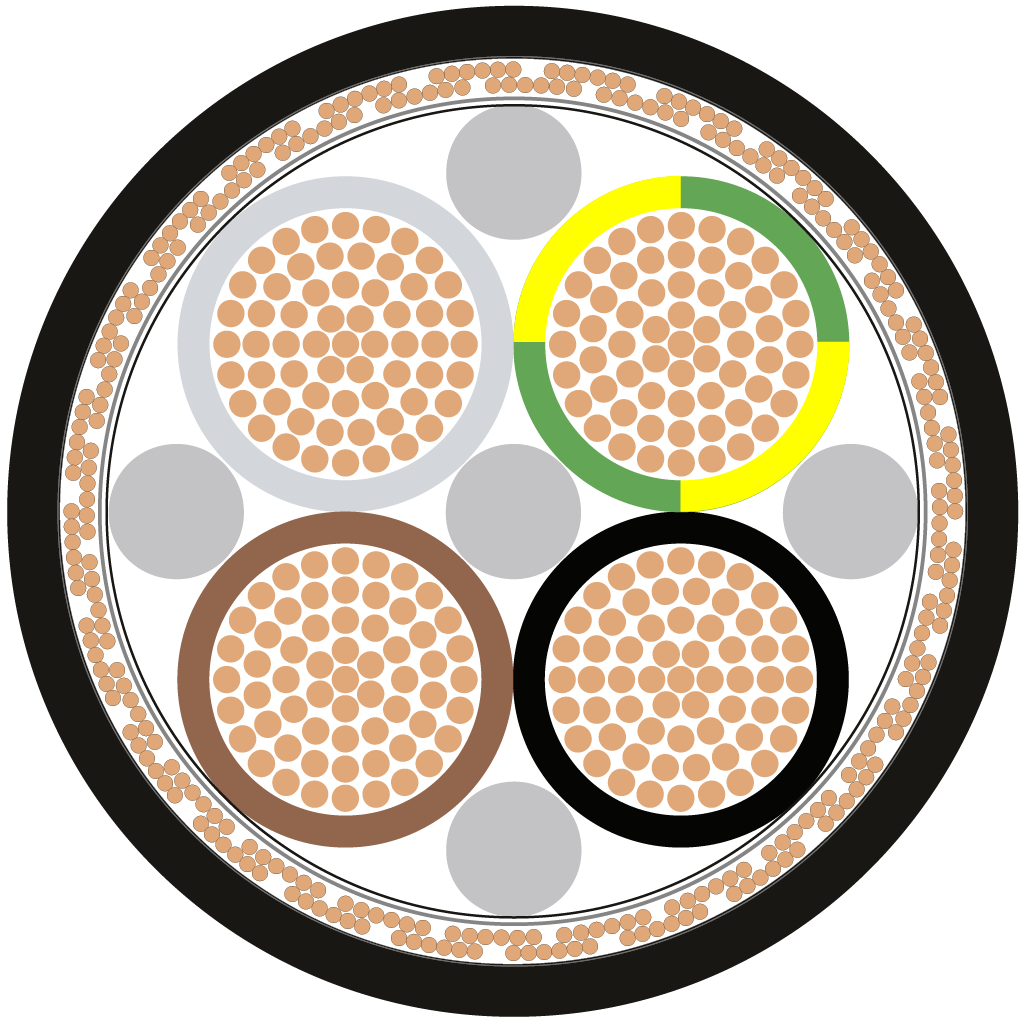

The halogen free cable is made of class 5 tinned fine copper strands, both insulation and outer sheath are electron-beam cross-linked and has an increased environmental compatibility.
The cable can be used as connection and or power cable, has a good resistance to weathering, ozone, UV-rays and oil, suitable for outdoor use.
Can also be used for the connection of lamps and heating units and panels with class B insulation.

Fixed and flexible application in dry, humid and wet rooms. Good weather, ozone and UV resistance. Extensively oil resistant. Intended for installation outdoors. Typical areas of application are connections of:

• Lamps
• Heatingunits
• Electrical machinery (thermal class B)
• Switchboards / switchcabinets

MAIN CHARACTERISTICS

• 0,6 /1kV
• Testing voltage 3500V
• Fixed -55°C up to +145°C
• Halogen free
• Flame retardant
• Non-flame propagating
• Low fire load
• Electron-beam cross-linked SHF2
• EMC-optimized braided shielding (coverage appr. 85%

APPROVALS

The BETAflam® 145 C-flex VM has been approved according to:

• Bureau Veritas (BV)
• DNV/GL
