Marine & Offshore Cable (DNV-GL Approved)

The 02YSC H 2x4x2x0.60/1.43-100 PIMF is a high-performance marine and offshore instrumentation/control cabledesigned for reliable signal transmission in harsh shipboard and offshore environments. It is DNV-GL certified, making it suitable for use on vessels and offshore installations where compliance, safety, and durability are critical.

With PIMF shielding (Pair in Metal Foil), the cable offers strong protection against electromagnetic interference (EMI), helping maintain signal integrity for sensitive instrumentation and communication systems.

Key Features & Benefits

• Marine & Offshore approved – compliant for demanding maritime and offshore installations

• DNV-GL Certificate – supports class and project requirements

• RoHS compliant (Directive 2011/65/EC)

• Low Smoke, Flame Retardant, Halogen Free (LSFH / LS0H) – improved safety in enclosed spaces

• Zero Halogen – reduces toxic and corrosive gas emissions in case of fire

• Low corrosivity of fumes according to IEC 60754-2

• Low smoke density according to IEC 61034

• UV-resistant – suitable for outdoor and exposed installations

Ideal for marine instrumentation, offshore platforms, control cabinets, monitoring systems, and other signal and data transmission applications requiring shielde.

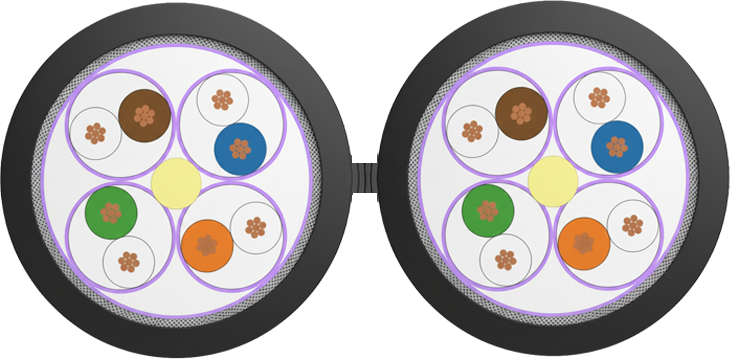

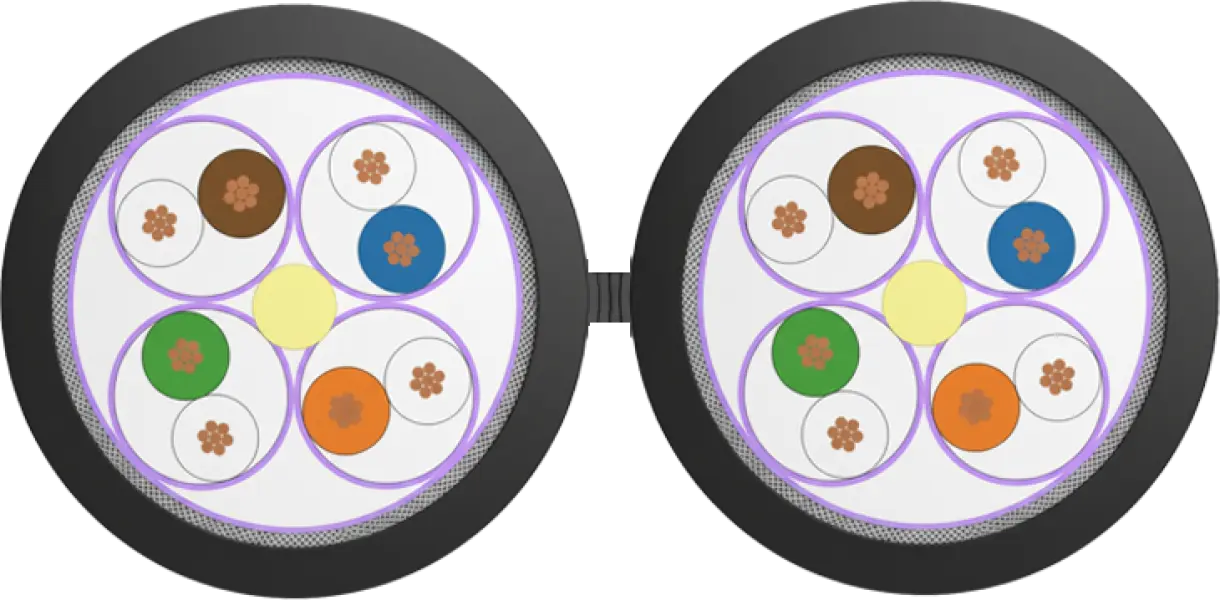

Wire
Bare copper wire (23 AWG)
Insulation of foamed Polyethylene (PE) with skin

Shielded pair
2 wires twisted to a pair
Alulaminate foil overlapped, applied longitudinally

Core:
Strain relief
4 pairs WH/BU-WH/OG-WH/GN-WH/BN Shield braiding of tinned copper wires Coverage about 55%

Jacket:
2 elements side by side Thermoplastic copolymer (FRNC) BK Outer dimensions
