Network, control and instrumentation cable for fixed installations in ships and on offshore platforms.

halogen-free, flame retardant

SK-(KS-02YSCH)/KL-U-DQ(ZN)BH/2X(St+C)/H

6 x Cat. 7 (4 x 2 x AWG 23/1 PiMF) + 1 x 3 x 1.5 mm² + 8 x G50/125 OM4 - bendable/ 4 x E 9/125 OS2

For data transmission and controlling on ships. Recommended for fixed installation indoor and outdoor, in dry and wet locations

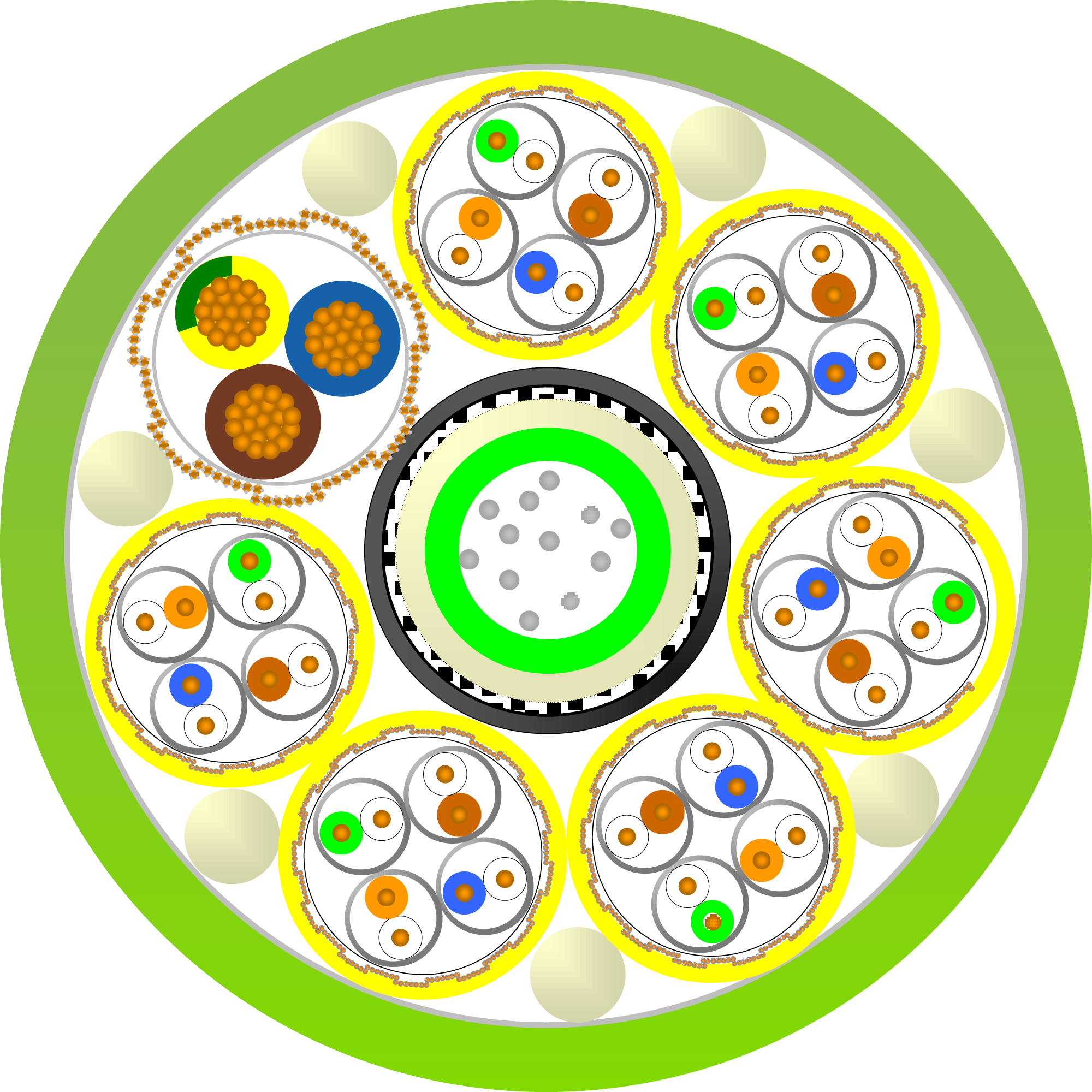

Construction

1. Copper data pairs (6 x (4 x 2 x AWG 23/1) PiMF) 100Ω (Cat. 7)
   Conductor ................. solid plain copper, size: AWG 23/1
   Insulation................... foamed polyethylene PE with skin layer of PE (Ø 1.45 mm approx.)
   Colour code............... white/blue, white/orange, white/green, white/brown
   Pair Screen ................ plastic coated aluminium tape, metallic surface outside in contact with tinned copper wire braid (overall screen)
   Overall Screen .......... tinned copper wire braid
   Outer sheath ............. halogen-free flame retardant polymer, yellow
   Cable Marking ........... continuously numbered

2. Power Supply 1 x 3 x 1.5 mm²
   Conductor ................. multistranded plain copper, size: 1.5 mm² (class 5 in acc. to IEC 60228)
   Insulation................... cross linked polyethylene XLPE
   Colour code............... yellow-green, blue, brown
   Laying up................... cores twisted to cable core (with filling elements if necessary)
   Overall screen ........... at least 1 layer plastic tape, overlapped; 1 layer of aluminium coated plastic tape, overlapped, metallic surface in contact with tinned copper wire braid; opt. coverage min. 84 % (in acc. to IEC 60092-350), geometrical cross section approx. 2.7 mm²


3. Fibre Optic Cable* (loose tube) 8 G 50/125 + 4 E 9/125 8 fibre Multi-Mode (G 50/125 OM4-bendable)
   Colour code............... red/green/blue/yellow/white/grey/brown/violet 4 fibre Single- Mode (E 9/125 OS2)
   Colour code............... turquois/black/orange/pink
   Core ........................... jelly filled loose tube (Ø 2.9 mm) with 12 fibres Strain relief/ Armour . multifunctional E-glass yarns as strain relief and non-metallic rodent protection above the central loose tube
   Outer sheath ............. halogen-free, flame retardant polymer, black


4. Cable core
   Laying up................... elements twisted to cable core (with filling elements if necessary)
   Wrapping ................... at least 1 layer of plastic tape, overlapped
   Outer sheath ............. halogen-free, flame retardant polymer, green
   Cable Marking ........... SPEZIALHYBRID V-II-C-1 WIKING KABEL (inkjet) Production Lot Code Length Marking

APPROVALS
