The BETAtrans® 4 GKW-ENX EN is due to the double insulated designed qualified for short circuit and earth fault-proof applications.

The halogen free BETAtrans is made of class 5 tinned fine copper strands with a electron-beam cross-linked outer sheath with excellent thermal properties of insulation material that result in expectation of higher life time as well in elevation of current rating capacity.

These cables are used for fixed protected installations inside and outside. These cables have optimised outer diameter and therefore they are applied in applications where space is very limited.

Typical areas of application are connections of:

• Wiring of electric engines
• Wwitch and auxiliary boards
• Converters and distribution boxes
• Qualified for short circuit and earth fault-proof applications

MAIN CHARACTERISTICS

• 1.8/3kV  AC
• Testing voltage 6,5kV AC (50Hz/5 min)
• Fixed -40°C up to +120°C

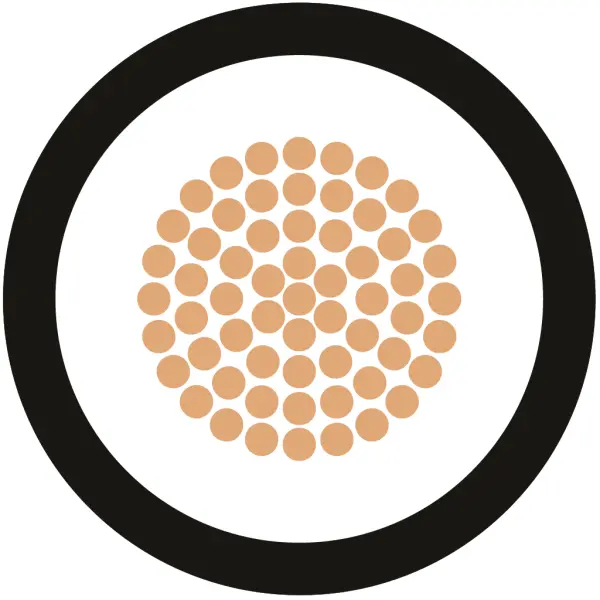

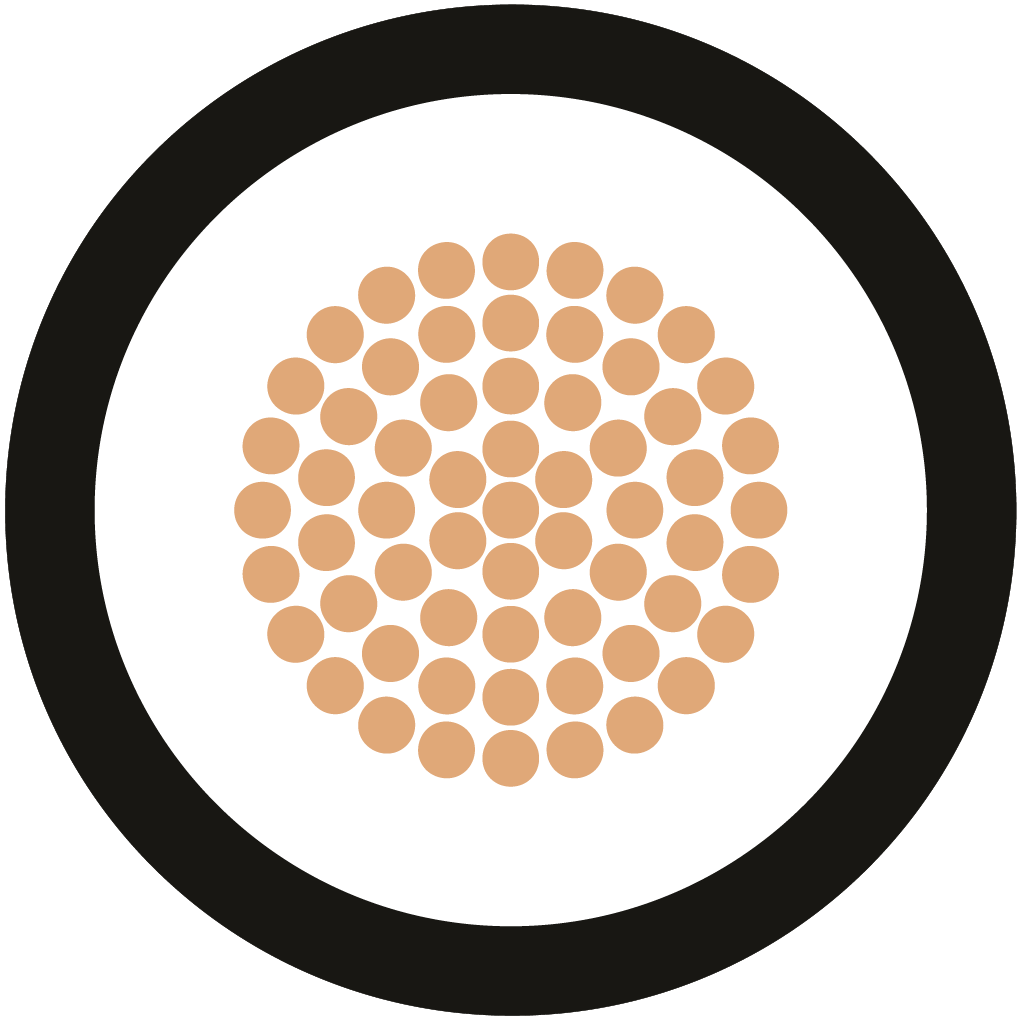

• Tinned fine copper strands (Class 5)
• Halogen free
• DOUBLE-INSULATED
• Flame retardant
• Non-flame propagating
• Low fire load
• Highly resistant to UV, oil and diesel
• Electron-beam cross-linked
