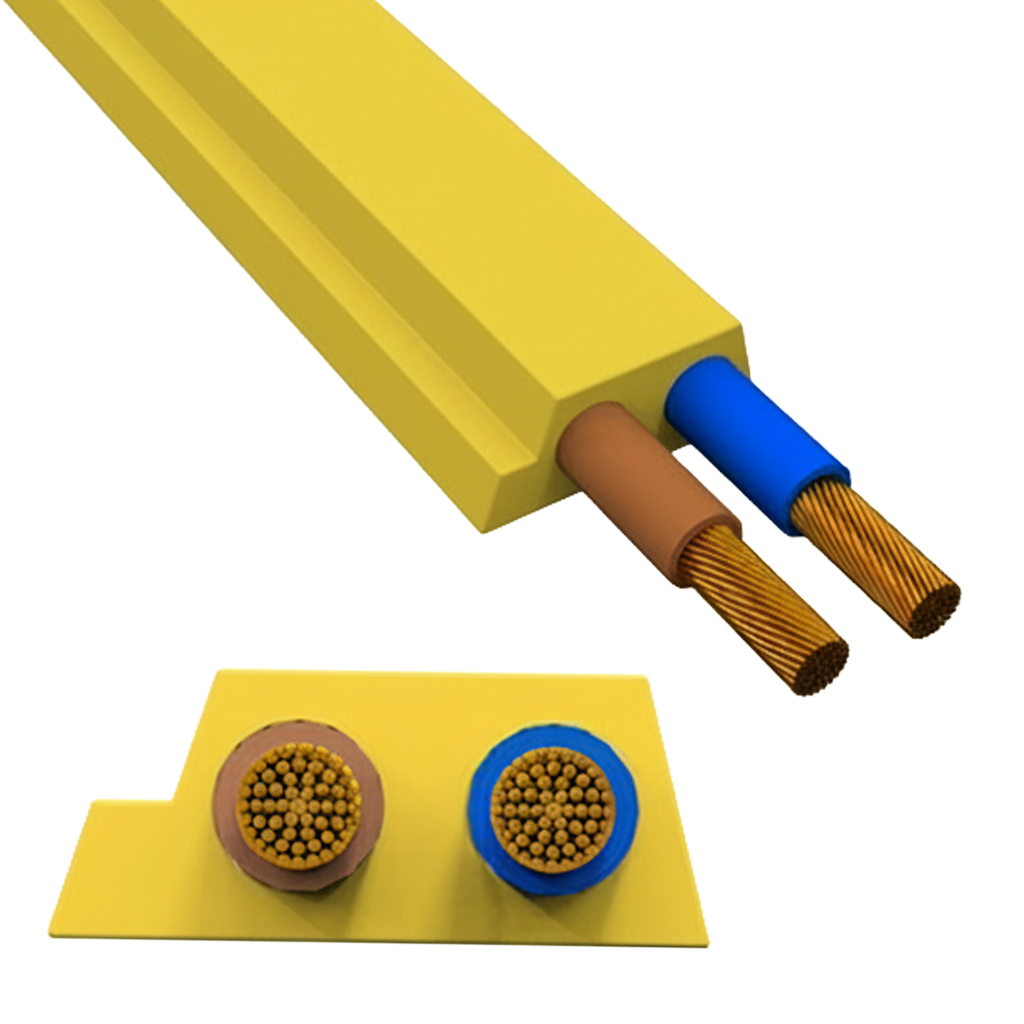

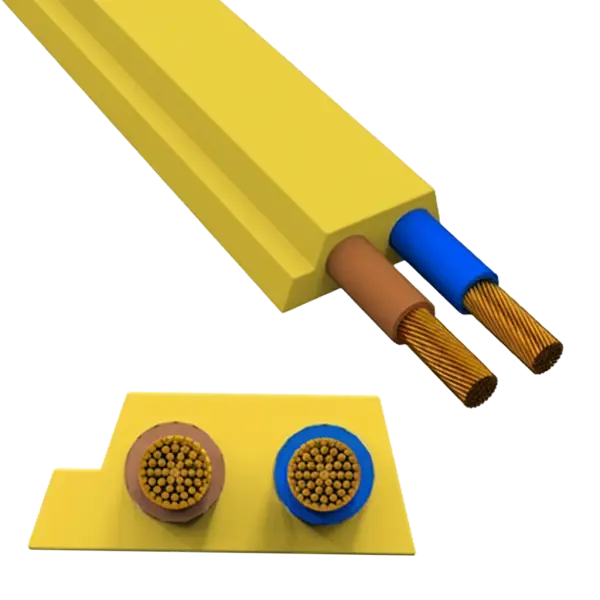

This AS-Interface (AS-i) cable is approved for marine and offshore installations and engineered for reliable performance in demanding shipboard and offshore environments where mechanical stress and long service life are critical.

Marine & Offshore Type Approvals

Certified/approved for use in marine and offshore applications by:

• Germanischer Lloyd (GL)
• Lloyd’s Register (LR)
• ABS Europe Ltd
• Bureau Veritas (BV)
• Det Norske Veritas (DNV)

Key Mechanical Performance

Designed for dynamic routing and motion-intensive installations:

• Reverse bending strength (horizontal routing on the broadside), including:
  • bending cycles
  • maximum acceleration
  • maximum horizontal speed
  • minimum bending radius
  • maximum horizontal travel length / cable run
• High torsional resistance: ≥ 10 million cycles at ±180° torsion over a 0.5 m length

Conductor & Material Construction

• Conductor: finely stranded, highly flexible wire per DIN VDE 0295, Class 6
• Insulation: thermoplastic polypropylene copolymer (FRNC) (flame retardant, non-corrosive)
• Outer jacket: Polyurethane (PUR), yellow (YE)
• Jacket wall thickness: 0.6 mm

Installation Note
For correct installation orientation: the brown wire must lie on the broadside of the profile.
