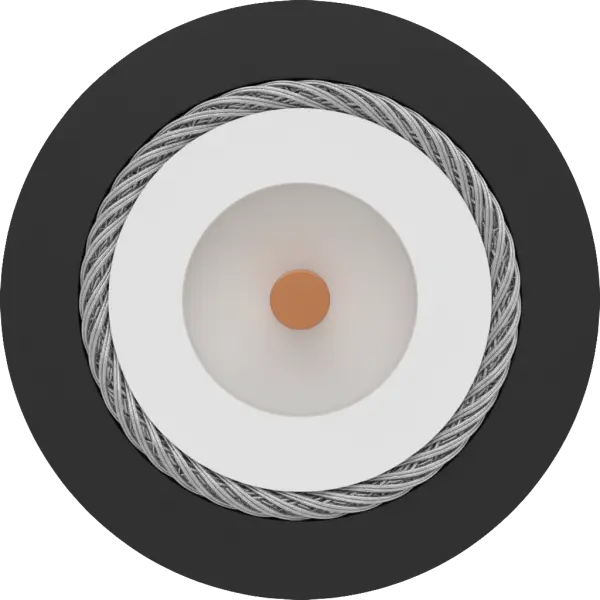

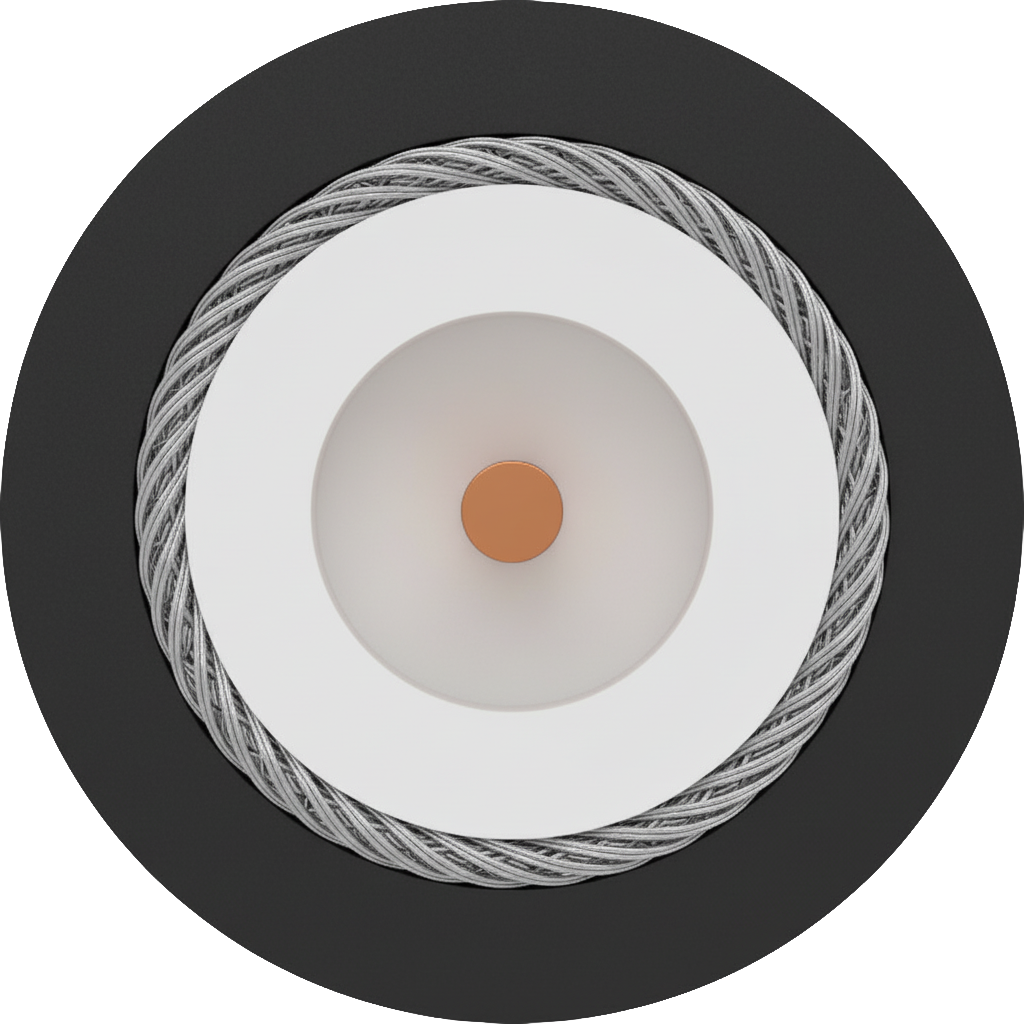

The 2YCH 0.6/3.7-75 FRNC RG59 SHF1 is a 75 Ω coaxial cable engineered and certified for demanding marine and offshore installations. With a halogen-free, flame-retardant SHF1 sheath and UV-resistant outer jacket, it is a reliable choice for shipboard systems and offshore platforms where safety, durability, and compliance are essential. This cable is similar to RG59 and suitable for a wide range of signal and video transmission applications in harsh environments.

Approved for Marine and Offshore Applications

• DNV-GL certified for marine and offshore applications
• 75 Ohm impedance (RG59 equivalent) for stable signal performance
• SHF1 jacket (IEC 60092-360 / IEC 60092-359) for marine-grade safety and robustness
• Flame retardant according to IEC 60332-3-22 Category A
• Halogen-free (FRNC/LSZH) to reduce smoke and toxic gas emission in case of fire
• UV-resistant for exposed outdoor installations
• RoHS compliant (Directive 2011/65/EC)
• Conductor: Cu-ETP-R, according to DIN EN 13602
• Screen: Cu-ETP-A, according to DIN EN 13602
• Insulation: (2Y) to DIN EN 50290-2-23 (VDE 0819), Table HD (HD 624.3)
• Outer sheath: SHF1 to IEC 60092-360 / IEC 60092-359
• Flame retardancy: IEC 60332-3-22 (Cat. A)
